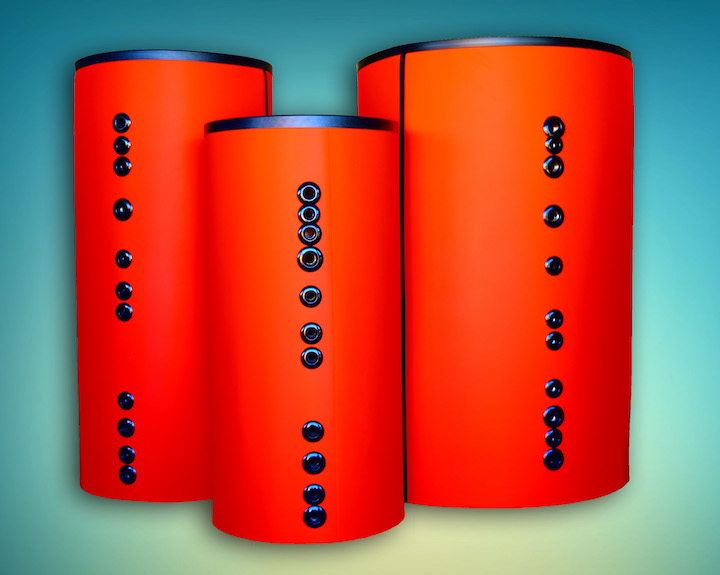

Akumulačné nádrže ANP a ANS

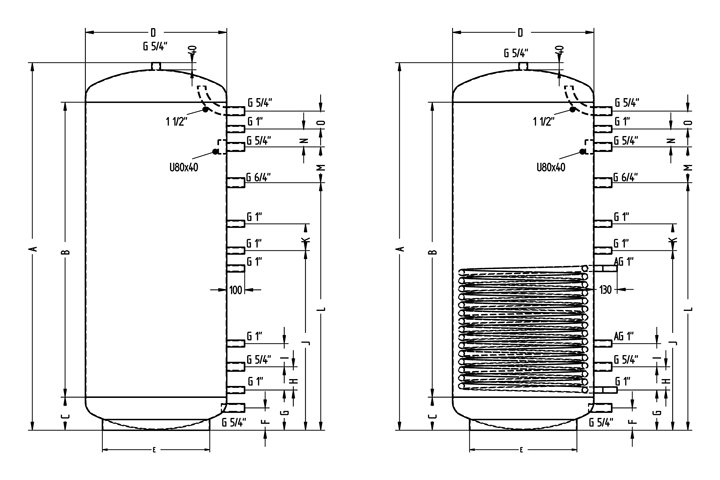

Rozmery
| ANP | 500 | 800 | 1000 | 1500 | 2000 |
|---|---|---|---|---|---|
| A | 1748 mm | 1917 mm | 2057 mm | 2057 mm | 2307 mm |
| B | 1400 mm | 1510 mm | 1650 mm | 1510 mm | 1770 mm |
| C | 165 mm | 185 mm | 185 mm | 250 mm | 250 mm |
| D | 650 mm | 790 mm | 790 mm | 1000 mm | 1100 mm |
| E | 500 mm | 600 mm | 600 mm | 800 mm | 900 mm |
| F | 115 mm | 125 mm | 125 mm | 190 mm | 190 mm |
| G | 205 mm | 225 mm | 225 mm | 290 mm | 285 mm |
| H | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| I | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| J | 865 mm | 965 mm | 1005 mm | 1030 mm | 1065 mm |
| K | 150 mm | 150 mm | 150 mm | 150 mm | 240 mm |
| L | 1165 mm | 1285 mm | 1385 mm | 1350 mm | 1530 mm |
| M | 120 mm | 150 mm | 200 mm | 150 mm | 150 mm |
| N | 100 mm | 100 mm | 100 mm | 100 mm | 150 mm |
| O | 100 mm | 100 mm | 100 mm | 100 mm | 125 mm |
| HMOTNOSŤ | 96 kg | 128 kg | 136 kg | 194 kg | 236 kg |
| ANS | 500 | 800 | 1000 | 1500 | 2000 |
|---|---|---|---|---|---|
| A | 1748 mm | 1917 mm | 2057 mm | 2057 mm | 2307 mm |
| B | 1400 mm | 1510 mm | 1650 mm | 1510 mm | 1770 mm |
| C | 165 mm | 185 mm | 185 mm | 250 mm | 250 mm |
| D | 650 mm | 790 mm | 790 mm | 1000 mm | 1100 mm |
| E | 500 mm | 600 mm | 600 mm | 800 mm | 900 mm |
| F | 115 mm | 125 mm | 125 mm | 190 mm | 190 mm |
| G | 205 mm | 225 mm | 225 mm | 290 mm | 285 mm |
| H | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| I | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| J | 865 mm | 965 mm | 1005 mm | 1030 mm | 1065 mm |
| K | 150 mm | 150 mm | 150 mm | 150 mm | 240 mm |
| L | 1165 mm | 1285 mm | 1385 mm | 1350 mm | 1530 mm |
| M | 120 mm | 150 mm | 200 mm | 150 mm | 150 mm |
| N | 100 mm | 100 mm | 100 mm | 100 mm | 150 mm |
| O | 100 mm | 100 mm | 100 mm | 100 mm | 125 mm |
| HMOTNOSŤ | 130 kg | 176 kg | 197 kg | 259 kg | 312 kg |
| Solárna šp. | 1,8 m2 | 2,6 m2 | 3,2 m2 | 3,5 m2 | 4,0 m2 |
Skúšobný tlak v nádrži: 5 bar, Prevádzkový tlak v nádrži: 3 bar, Prevádzková teplota nádrže: 0-95 °C, Prevádzkový tlak solárnej špirály v nádrži: 10 bar.
